Noggerath^®
Overflow Screen
OVF / OVF-R

On this page

Reliable separation and filtration of solids in municipal and industrial wastewater treatment plants. Proven many times over for the protection of water or downstream processes.

Unique Features

Optimum solids retention and minimum hydraulic resistance
Automatic forced cleaning and free axial discharge
Low space requirement and maximum adaptation to local conditions
Easy maintenance due to bolted main components
No service water required

Suitable for the following markets

Insights

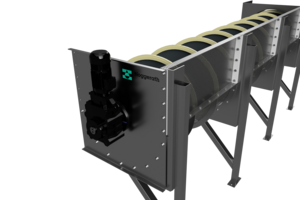

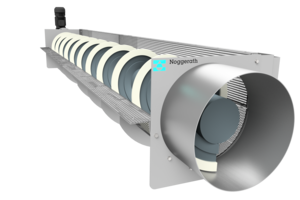

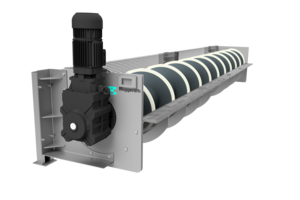

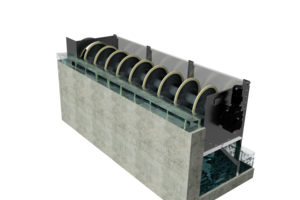

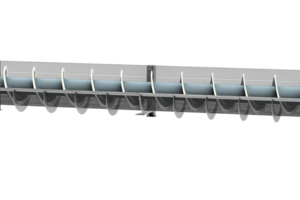

The Noggerath^® Overflow Screens OVF and OVF-R are spiral screens with automatic forced cleaning of the screen surface. They are used in municipal or industrial wastewater treatment plants at overflow sills for bypass screening of discharge water quantities. The sieves consist of a semi-cylindrical perforated plate screen trough and an internal conveying or cleaning screw.

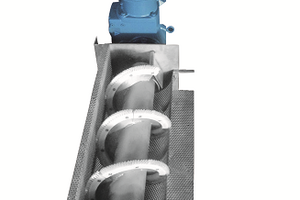

During operation, the liquid flows vertically along the entire length of the screen from top to bottom (OVF) or, in the case of the OVF-R (Reverse), from bottom to top through the screen surface. Hereby the solids are retained and conveyed to the discharge zone by the automatically operated screw. Brush segments mounted along the entire length of the screw ensure optimum cleaning of the radial screening surfaces and prevent the screenings from being pushed through the screen.

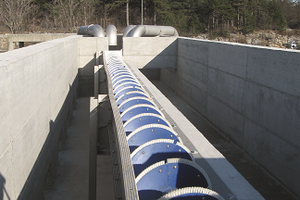

Noggerath^® Overflow Screens for Filtration & Retention of Solids at Rain Overflow Basins/Combined Sewer Overflows

View

Downloads

download

Product Flyer Overflow Screen OVF / OVF-R Download (PDF, 656 KB)

Noggerath® Overflow Screen OVF / OVF-R

Unique Features

Suitable for the following markets

Wastewater Treatment

Insights

Downloads

Choose your regional contact for a product inquiry. A sales representative will respond to you shortly via telephone or email.
