Geiger® Fish Protection Technology

Punta Catalina, Dominican Republic

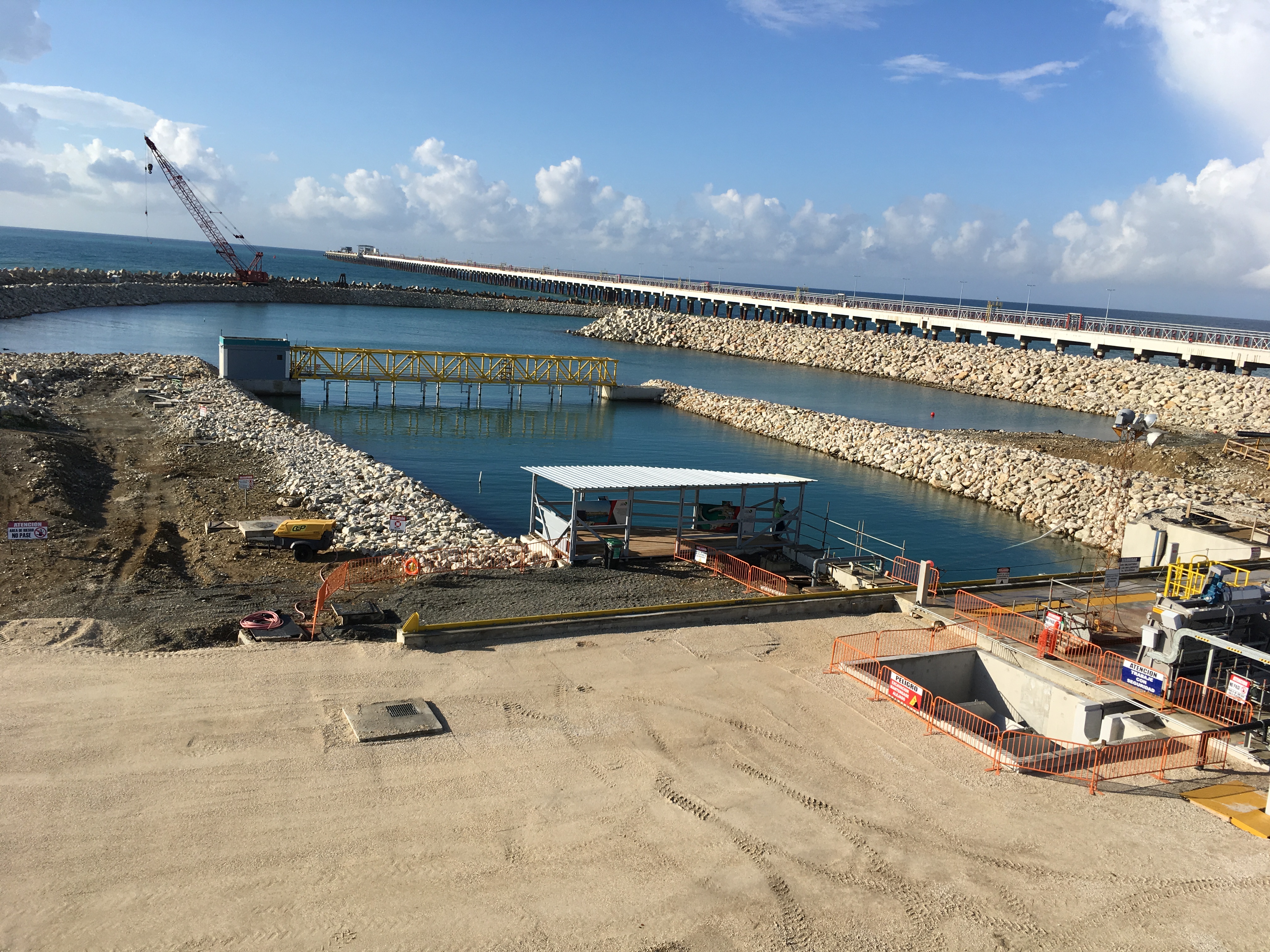

Geiger® fish protection technology and filtration of debris in the water intake of the coal-fired power plant in Punta Catalina, Dominican Republic.

Challenge

The plant was built in 2016 in an area with an increased earthquake risk and high wind forces (240 km/h), therefore structual calculations and reinforced designs for the steel structures (the storage rack for the stop logs) were required.

Solution

Cooling water intake meets the highest requirements for fish protection and is therefore one of the first plants outside Europe and North America with such a high standard of fish protection solution while filtrating debris.

An electric fish repelling system forms a barrier against swimming fish in front of the water intake structure. Small fish, which cannot be retained by the fish repelling system, are transported upwards by the fish buckets, which are integrated in the travelling band screens and returned to the sea via a separate fish channel and fish return line.

Technical Data

4 channels:

Channel width:   4,4 m
Channel depth: 10,2 m
Flow Rate per channel: 30.000 m³/h sea water

Geiger® Fish Repelling System

4 Geiger® Stoplogs with 8 guideways, lifting beams and storage stand

Geiger® Cable-Operated Bar Screens

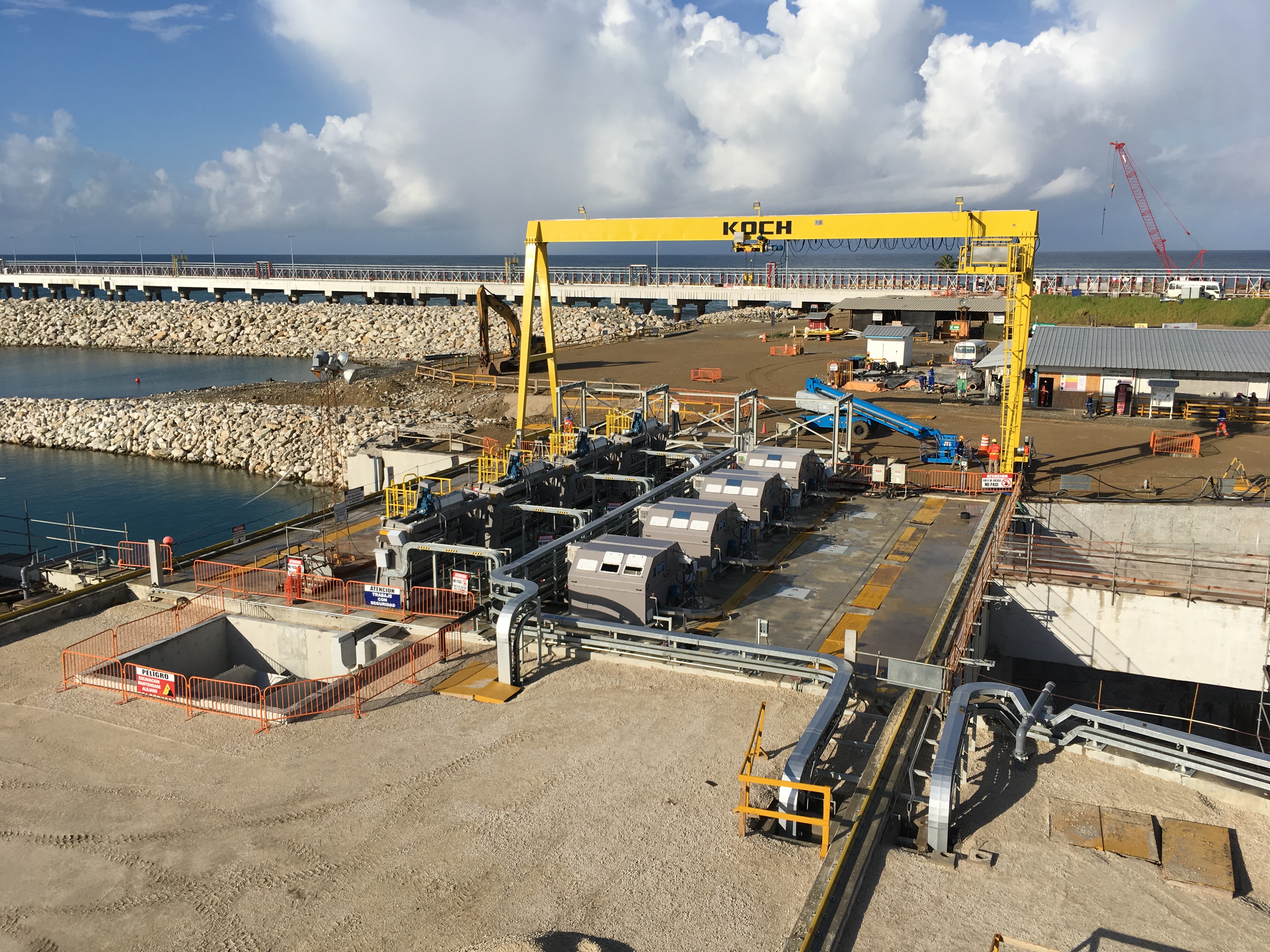

Geiger® Centre-Flow Travelling Band Screens with fish return system

Spray water system with submersible pumps

Key Features

  • Optimum protection of larger fish and other aquatic organisms by an upstream electric fish repelling system
  • Geiger® Cable-Operated Bar Screens with automated cleaning
  • Safe collection and removal of bulky debris
  • High load capacity of the cleaner carriage
  • Geiger® Centre-Flow Travelling Band Screens (in-to-out-flow) with special screen shape and integrated fish buckets to protect and retract of the smaller fish
  • Emptying the fish buckets into a separate fish collecting channel
  • Particularly gentle return of fish and biologically valuable substances
  • Intensive cleaning of the screen panels with spray water only when descending i.e. after the fish buckets have been emptied
